MH-742B Combustible Gas Sensor High Sensitivity High Resolution Low Power Consumption High sensitivity High Resolution Low Power Consumption

China MH-742B Combustible Gas Sensor High Sensitivity High Resolution Low Power Consumption High sensitivity High Resolution Low Power Consumption wholesale

Model Number : MH-742B

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5work days

Gas Detected : Combustible gas (see Table 2 for details)

Working Voltage : 4.5 V ~ 5.5V DC

Average Current : < 100mA

Interface Level : 3.3V

Measurement Range : 0~100%VOL optional (view table 2)

Warm-up Time : <2min

Contact Now

MH-742B Combustible Gas Sensor High Sensitivity High Resolution Low Power Consumption High sensitivity High Resolution Low Power Consumption

Product Description:

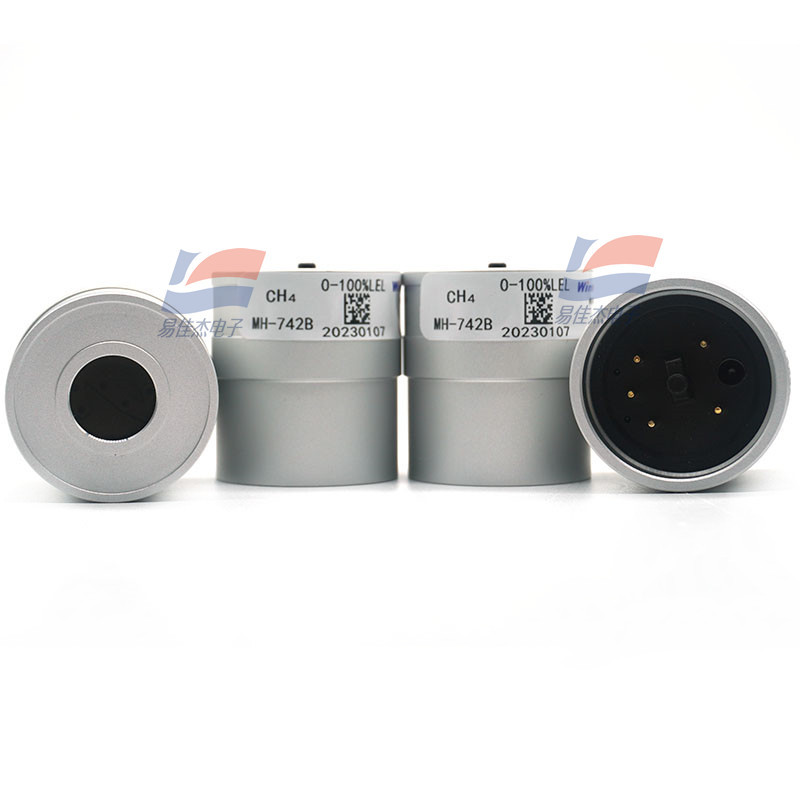

MH-742B is a universal type intelligent sensor to detect combustible gas,taking advantage of non-dispersive infrared (NDIR) principle. With high selectivity, no oxygen dependence, high performance and long lifespan features, MH-742B also has built-in temperature compensation feature. MH-742B is a compact and high-performance sensor based on infrared absorption of gas detection technology, micro-machining and sophisticated circuit design.

Features:

High sensitivity, high resolution, low power consumption Output method: UART, analog voltage signal, etc. Quick response  Temperature compensation, excellent linear output Excellent stability, Long lifespan Anti-poisons, anti-vapor interference

Application :

Widely used for industrial field instrumentation, industrial-process control and safety protection

Working Temperature	-40℃ ~ 70℃
Working Humidity	0 to 95%RH, non-condensing
Dimension	Φ39×44mm
Weight	280g
Lifespan	>5 years

MH-742B Combustible Gas Sensor High Sensitivity High Resolution Low Power Consumption High sensitivity High Resolution Low Power Consumption
