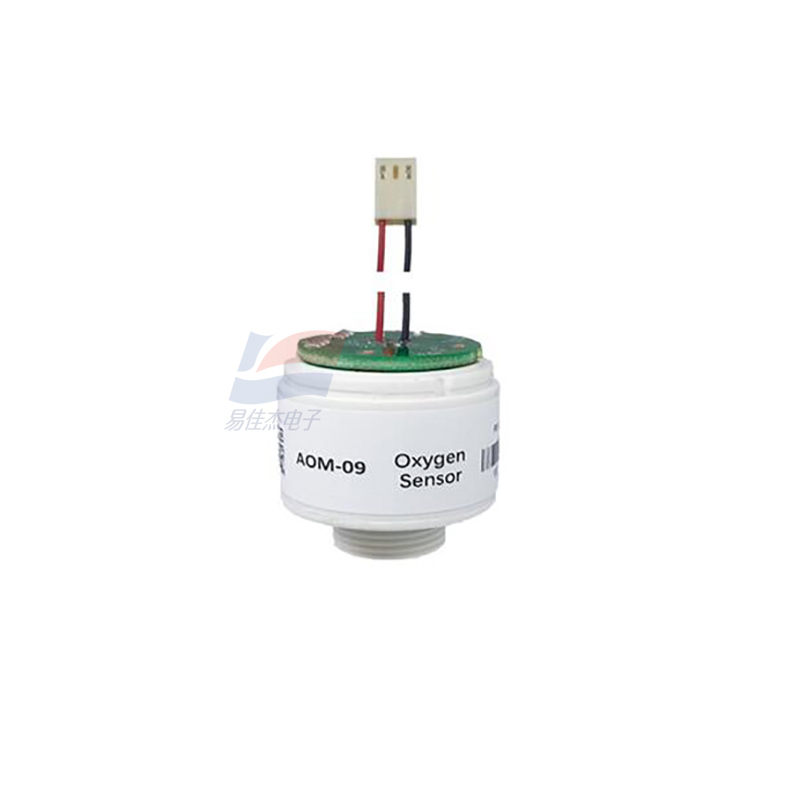

AOM-09 Oxygen Gas Sensors Partial Pressure Electrochemical About 40g

Brand Name : YJJ

Model Number : AOM-09

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000pcs/Month

Delivery Time : 3-5Workingdays

Packaging Details : Standard

Working principle : Partial voltage electrochemistry

Output voltage : 9~13mV (in air)

Measurement range : 0~100

Te response time : <15s

Contact Now

AOM-09 Oxygen Gas Sensors Partial Pressure Electrochemical About 40g

Oxygen sensor
* Full range linear output
* No external power supply required for operation
* Temperature compensation
* Fast response
* Accurate and reliable
* Strong anti-interference ability

Application Scope
AOM-09 oxygen sensor does not require external power supply when working. It is professionally and accurately calibrated and temperature compensated before leaving the factory. It can be used as the sensor component of oxygen analyzer, such as oxygen concentrator control device, medical ventilator, anesthesia equipment, incubator, etc.

Temperature compensation	<2% O2 equivalent (0~40 ℃)
Load resistance	≥10 kΩ
Interface Molex	3-pin connector (2.54mm, with connecting wire)
Casing material	White ABS
Weight About	40 grams
Operating temperature range	0~50 ℃
Operating pressure range	0.5~2.0 bar
Operating humidity range	0~99% RH (non-condensing)
